Manufacturer reference image. Included components and condition follow the selected item.

网络配件

NVIDIA C8180X PCIe auxiliary kit (930-9XAX6-0025-000)

P/N:930-9XAX6-0025-000 SKU: 930-9XAX6-0025-000品牌: NVIDIA
类型
MCIO

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述
C8180X is the separately ordered PCIe auxiliary kit identified by 930-9XAX6-0025-000. The official package description lists one auxiliary connection card, one 250 mm MCIO cable, a fitted tall bracket and a short bracket. It is a supporting PCIe assembly, not a complete ConnectX-8 network adapter. Public tables disagree on the auxiliary PCIe generation and signal rate, so those parameters need confirmation before the kit is specified for a server.
规格参数
型号C8180X
bracketsTall, fitted, Short
Cable typeMCIO
Multi hostYes
Cable count1
料号930-9XAX6-0025-000
Product typePCIe auxiliary connection kit
Cable length (mm)250
Auxiliary card count1
Card dimensions (mm)144.75 x 66.4

产品问答

Is this a ConnectX-8 SuperNIC?

No. C8180X is an auxiliary PCIe connection kit with a card, cable and brackets.

What cable is included?

The package lists one 250 mm MCIO cable.

Can it be described unconditionally as PCIe Gen 6?

No. The public ordering description, package-contents table and technical-specification table disagree. Keep generation and rate fields unset until confirmed.

Does it include a primary networking card?

The listed package includes the auxiliary connection card, not a primary ConnectX network adapter.

Is there an official product image?

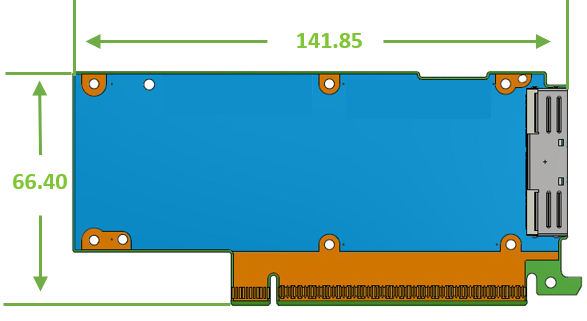

A manufacturer mechanical drawing of the auxiliary board is available. It is not a photograph of the complete packaged kit and commercial reuse permission is unconfirmed.

What should be provided to qualify the kit?

Provide the primary card order code, server PCIe topology, intended mode, available slot and cable route. Obtain the exact auxiliary generation/rate confirmation from NVIDIA.

可以先描述需求，型号、主机或数量尚未确定也能咨询。
