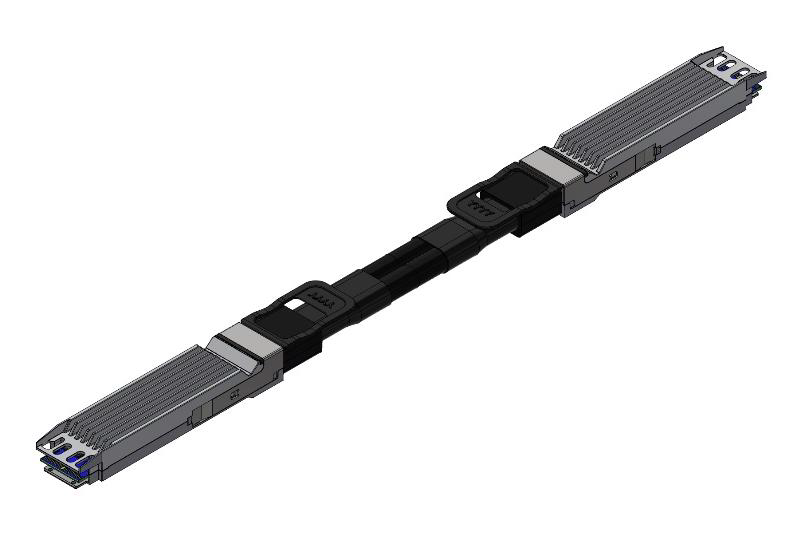

NVIDIA MCP4Y10-N002 800G Twin-port OSFP Passive DAC Cable, 2 m
面议
有货
配送按订单确认
保修按商品确认
30 天退换
800G aggregate bandwidth (2…2 mCopper cable with low-smoke…双端口 OSFP，鳍片散热顶盖
产品选型摘要
光模块 采购场景
NVIDIA MCP4Y10-N002 800G Twin-port OSFP Passive DAC Cable, 2 m 在 SwitchInfra 上作为面向 DAC/AOC/ACC/AEC Cables 的光模块展示。买家可以在采购前评估规格、部署适配、库存可用性和询价准备度。
常见应用
- 数据中心互联
- 服务器到交换机连接
- 高速光纤或铜缆连接
- 结构化布线
重点对比项
- 封装类型：双端口 OSFP，鳍片散热顶盖
- 介质：Copper cable with low-smoke zero-halogen (LSZH) jacket
- Cable Length: 2 m
- Minimum Bend Radius: 26 AWG version: 89 mm for installation/repeated bending; 44.5 mm for a single bend away from the connector
- 速率：800G aggregate bandwidth (2 × 400G)
询价建议
可通过购物车或询价流程确认数量、可用性、价格和项目需求后再采购。
产品描述
2 m passive OSFP-to-OSFP copper cable, with 800G aggregate bandwidth (2 × 400G), for supported InfiniBand NDR and Ethernet systems. Wire-gauge documentation differs between the overview and the 2 m specification row; confirm the supplied assembly before installation.
规格参数
MCP4Y10-N002 technical overview
2 m passive OSFP-to-OSFP copper cable, with 800G aggregate bandwidth (2 × 400G), for supported InfiniBand NDR and Ethernet systems. Wire-gauge documentation differs between the overview and the 2 m specification row; confirm the supplied assembly before installation.
| 封装类型 | 双端口 OSFP，鳍片散热顶盖 |
|---|---|
| 介质 | Copper cable with low-smoke zero-halogen (LSZH) jacket |
| Cable Length | 2 m |
| Minimum Bend Radius | 26 AWG version: 89 mm for installation/repeated bending; 44.5 mm for a single bend away from the connector |
| 速率 | 800G aggregate bandwidth (2 × 400G) |
| 品牌 | NVIDIA |
| 型号 | MCP4Y10-N002 |
| Protocol | InfiniBand NDR / Ethernet; subject to target-host support |
| 成色 | 全新 |
| Impedance | 90–110 Ω; 100 Ω typical |
| 接口 | OSFP to OSFP, single point-to-point cable |
| 管理方式 | I²C / CMIS 5.0 |
| Wire Gauge | Unresolved: the 2 m specification row lists 26 AWG; the overview lists 30 AWG |
| 料号 | 980-9IA0I-00N002 |
| 电源 | 3.135–3.465 V; 3.3 V typical |
| Product Type | Passive direct attach copper cable (DAC) |
| Assembly Space | 26 AWG version: at least 156 mm behind the connector |
| Cable Diameter | 26 AWG version: 8.9 ± 0.03 mm |
| 通道架构 | 8 × 100G-PAM4 electrical lanes |
| 功耗 | 0.1 W maximum |
| Operating Humidity | 5–85% |
| Storage Temperature | −40–85 °C |
| 工作壳温 | 0–70 °C |
产品特性
Product specifications
2 m passive OSFP-to-OSFP copper cable, with 800G aggregate bandwidth (2 × 400G), for supported InfiniBand NDR and Ethernet systems. Wire-gauge documentation differs between the overview and the 2 m specification row; confirm the supplied assembly before installation.
- 速率：800G aggregate bandwidth (2 × 400G)
- 封装类型：双端口 OSFP，鳍片散热顶盖
- Cable Length: 2 m
- Product Type: Passive direct attach copper cable (DAC)
